Stup 40 × 60

Stup linije s dvostrukom žicom: jedan profil, četiri načina montaže, dva razmaka rupa.

Podnožje stupa 40 × 60 na podnožnoj ploči

Jedan profil, četiri načina montaže: za ubetoniravanje, s podnožnom pločom, s L-pločom i U-lock. Panel drže spojnica i vijak kroz stup, pa se linija ograde može postaviti prije nego što se podigne ijedan panel. Vruće pocinčan ili plastificiran.

Artikli
350
Visina stupa
0,68 – 3,00 m
Presjek
40 × 60 × 1,5 mm · 40 × 60 × 2 mm
Boje i završne obrade
Vruće pocinčano · RAL 6005 · RAL 7016 · RAL 9005 · RAL 9010
Zatražite ponudu za ovaj proizvod

Artikli

Za ubetoniravanje · rupe na svakih 200 mm

50 artikala · Visina stupa 1,20 – 3,00 m

Stup 40 × 60 — Za ubetoniravanje · rupe na svakih 200 mm
PresjekVisina stupaVruće pocinčanoRAL 6005TamnozelenaRAL 7016Antracit sivaRAL 9005CrnaRAL 9010Bijela
40 × 60 × 1,5 mm1,20 mPT460001GALVPT460001R05PT460001R16PT460001R95PT460001R10
1,40 mPT460002GALVPT460002R05PT460002R16PT460002R95PT460002R10
1,60 mPT460003GALVPT460003R05PT460003R16PT460003R95PT460003R10
1,80 mPT460004GALVPT460004R05PT460004R16PT460004R95PT460004R10
40 × 60 × 2 mm2,00 mPT460005GALVPT460005R05PT460005R16PT460005R95PT460005R10
2,20 mPT460006GALVPT460006R05PT460006R16PT460006R95PT460006R10
2,40 mPT460007GALVPT460007R05PT460007R16PT460007R95PT460007R10
2,60 mPT460008GALVPT460008R05PT460008R16PT460008R95PT460008R10
2,80 mPT460009GALVPT460009R05PT460009R16PT460009R95PT460009R10
3,00 mPT460010GALVPT460010R05PT460010R16PT460010R95PT460010R10

Za ubetoniravanje · rupe na svakih 400 mm

50 artikala · Visina stupa 1,20 – 3,00 m

Stup 40 × 60 — Za ubetoniravanje · rupe na svakih 400 mm
PresjekVisina stupaVruće pocinčanoRAL 6005TamnozelenaRAL 7016Antracit sivaRAL 9005CrnaRAL 9010Bijela
40 × 60 × 1,5 mm1,20 mPT460011GALVPT460011R05PT460011R16PT460011R95PT460011R10
1,40 mPT460012GALVPT460012R05PT460012R16PT460012R95PT460012R10
1,60 mPT460013GALVPT460013R05PT460013R16PT460013R95PT460013R10
1,80 mPT460014GALVPT460014R05PT460014R16PT460014R95PT460014R10
40 × 60 × 2 mm2,00 mPT460015GALVPT460015R05PT460015R16PT460015R95PT460015R10
2,20 mPT460016GALVPT460016R05PT460016R16PT460016R95PT460016R10
2,40 mPT460017GALVPT460017R05PT460017R16PT460017R95PT460017R10
2,60 mPT460018GALVPT460018R05PT460018R16PT460018R95PT460018R10
2,80 mPT460019GALVPT460019R05PT460019R16PT460019R95PT460019R10
3,00 mPT460020GALVPT460020R05PT460020R16PT460020R95PT460020R10

S podnožnom pločom · rupe na svakih 200 mm

50 artikala · Visina stupa 0,68 – 2,48 m

Stup 40 × 60 — S podnožnom pločom · rupe na svakih 200 mm
PresjekVisina stupaVruće pocinčanoRAL 6005TamnozelenaRAL 7016Antracit sivaRAL 9005CrnaRAL 9010Bijela
40 × 60 × 1,5 mm0,68 mPT460021GALVPT460021R05PT460021R16PT460021R95PT460021R10
0,88 mPT460022GALVPT460022R05PT460022R16PT460022R95PT460022R10
1,08 mPT460023GALVPT460023R05PT460023R16PT460023R95PT460023R10
1,28 mPT460024GALVPT460024R05PT460024R16PT460024R95PT460024R10
40 × 60 × 2 mm1,48 mPT460025GALVPT460025R05PT460025R16PT460025R95PT460025R10
1,68 mPT460026GALVPT460026R05PT460026R16PT460026R95PT460026R10
1,88 mPT460027GALVPT460027R05PT460027R16PT460027R95PT460027R10
2,08 mPT460028GALVPT460028R05PT460028R16PT460028R95PT460028R10
2,28 mPT460029GALVPT460029R05PT460029R16PT460029R95PT460029R10
2,48 mPT460030GALVPT460030R05PT460030R16PT460030R95PT460030R10

S podnožnom pločom · rupe na svakih 400 mm

50 artikala · Visina stupa 0,68 – 2,48 m

Stup 40 × 60 — S podnožnom pločom · rupe na svakih 400 mm
PresjekVisina stupaVruće pocinčanoRAL 6005TamnozelenaRAL 7016Antracit sivaRAL 9005CrnaRAL 9010Bijela
40 × 60 × 1,5 mm0,68 mPT460031GALVPT460031R05PT460031R16PT460031R95PT460031R10
0,88 mPT460032GALVPT460032R05PT460032R16PT460032R95PT460032R10
1,08 mPT460033GALVPT460033R05PT460033R16PT460033R95PT460033R10
1,28 mPT460034GALVPT460034R05PT460034R16PT460034R95PT460034R10
40 × 60 × 2 mm1,48 mPT460035GALVPT460035R05PT460035R16PT460035R95PT460035R10
1,68 mPT460036GALVPT460036R05PT460036R16PT460036R95PT460036R10
1,88 mPT460037GALVPT460037R05PT460037R16PT460037R95PT460037R10
2,08 mPT460038GALVPT460038R05PT460038R16PT460038R95PT460038R10
2,28 mPT460039GALVPT460039R05PT460039R16PT460039R95PT460039R10
2,48 mPT460040GALVPT460040R05PT460040R16PT460040R95PT460040R10

S L-pločom · rupe na svakih 200 mm

50 artikala · Visina stupa 0,68 – 2,48 m

Stup 40 × 60 — S L-pločom · rupe na svakih 200 mm
PresjekVisina stupaVruće pocinčanoRAL 6005TamnozelenaRAL 7016Antracit sivaRAL 9005CrnaRAL 9010Bijela
40 × 60 × 1,5 mm0,68 mPT460041GALVPT460041R05PT460041R16PT460041R95PT460041R10
0,88 mPT460042GALVPT460042R05PT460042R16PT460042R95PT460042R10
1,08 mPT460043GALVPT460043R05PT460043R16PT460043R95PT460043R10
1,28 mPT460044GALVPT460044R05PT460044R16PT460044R95PT460044R10
40 × 60 × 2 mm1,48 mPT460045GALVPT460045R05PT460045R16PT460045R95PT460045R10
1,68 mPT460046GALVPT460046R05PT460046R16PT460046R95PT460046R10
1,88 mPT460047GALVPT460047R05PT460047R16PT460047R95PT460047R10
2,08 mPT460048GALVPT460048R05PT460048R16PT460048R95PT460048R10
2,28 mPT460049GALVPT460049R05PT460049R16PT460049R95PT460049R10
2,48 mPT460050GALVPT460050R05PT460050R16PT460050R95PT460050R10

S L-pločom · rupe na svakih 400 mm

50 artikala · Visina stupa 0,68 – 2,48 m

Stup 40 × 60 — S L-pločom · rupe na svakih 400 mm
PresjekVisina stupaVruće pocinčanoRAL 6005TamnozelenaRAL 7016Antracit sivaRAL 9005CrnaRAL 9010Bijela
40 × 60 × 1,5 mm0,68 mPT460051GALVPT460051R05PT460051R16PT460051R95PT460051R10
0,88 mPT460052GALVPT460052R05PT460052R16PT460052R95PT460052R10
1,08 mPT460053GALVPT460053R05PT460053R16PT460053R95PT460053R10
1,28 mPT460054GALVPT460054R05PT460054R16PT460054R95PT460054R10
40 × 60 × 2 mm1,48 mPT460055GALVPT460055R05PT460055R16PT460055R95PT460055R10
1,68 mPT460056GALVPT460056R05PT460056R16PT460056R95PT460056R10
1,88 mPT460057GALVPT460057R05PT460057R16PT460057R95PT460057R10
2,08 mPT460058GALVPT460058R05PT460058R16PT460058R95PT460058R10
2,28 mPT460059GALVPT460059R05PT460059R16PT460059R95PT460059R10
2,48 mPT460060GALVPT460060R05PT460060R16PT460060R95PT460060R10

U-lock

50 artikala · Visina stupa 1,20 – 3,00 m

Stup 40 × 60 — U-lock
PresjekVisina stupaVruće pocinčanoRAL 6005TamnozelenaRAL 7016Antracit sivaRAL 9005CrnaRAL 9010Bijela
40 × 60 × 1,5 mm1,20 mPU460001GALVPU460001R05PU460001R16PU460001R95PU460001R10
1,40 mPU460002GALVPU460002R05PU460002R16PU460002R95PU460002R10
1,60 mPU460003GALVPU460003R05PU460003R16PU460003R95PU460003R10
1,80 mPU460004GALVPU460004R05PU460004R16PU460004R95PU460004R10
40 × 60 × 2 mm2,00 mPU460005GALVPU460005R05PU460005R16PU460005R95PU460005R10
2,20 mPU460006GALVPU460006R05PU460006R16PU460006R95PU460006R10
2,40 mPU460007GALVPU460007R05PU460007R16PU460007R95PU460007R10
2,60 mPU460008GALVPU460008R05PU460008R16PU460008R95PU460008R10
2,80 mPU460009GALVPU460009R05PU460009R16PU460009R95PU460009R10
3,00 mPU460010GALVPU460010R05PU460010R16PU460010R95PU460010R10

Detalji

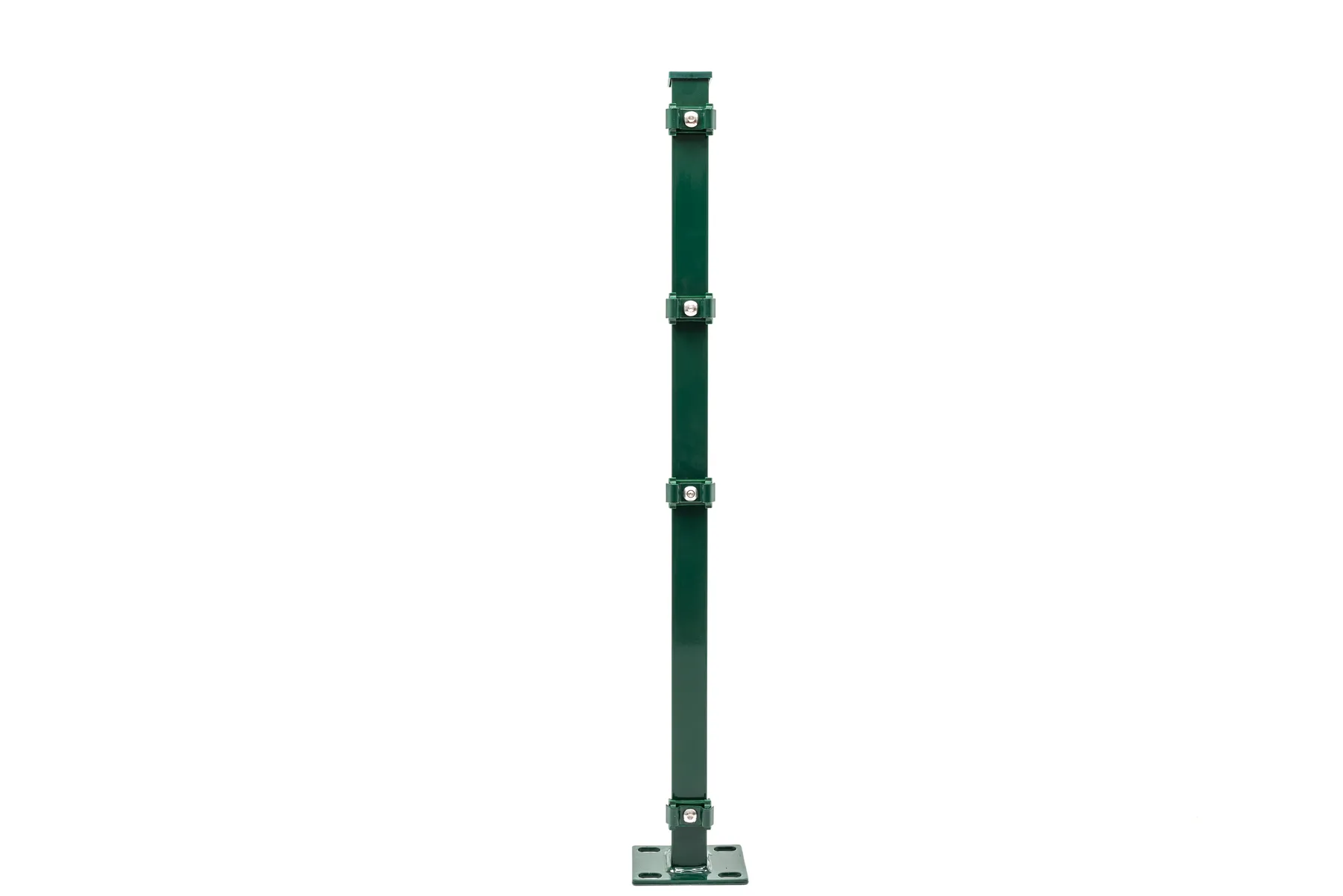

  • Stup 40 × 60 na podnožnoj ploči, cijelom visinom, sa spojnicama

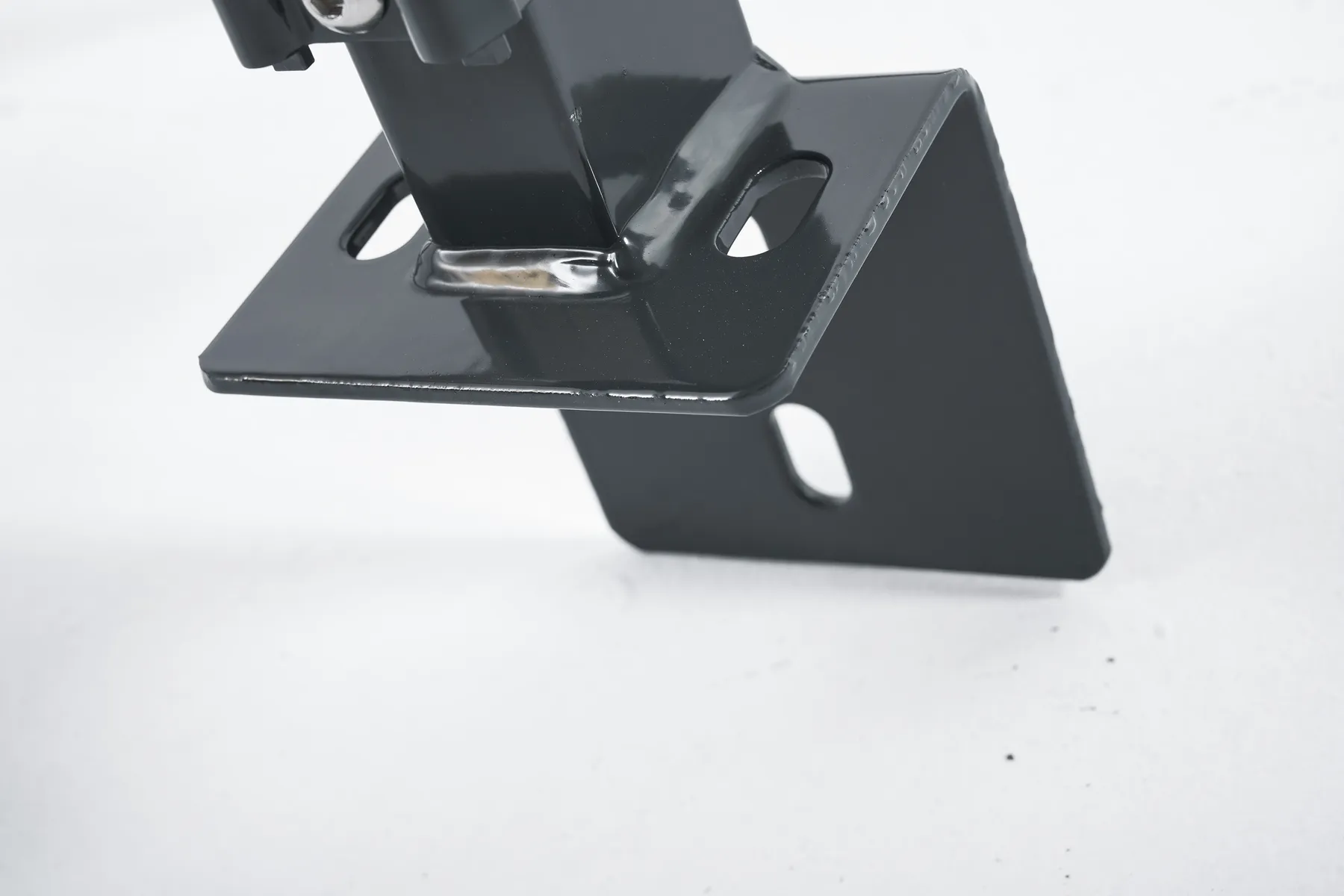

  • Podnožje stupa na L-ploči

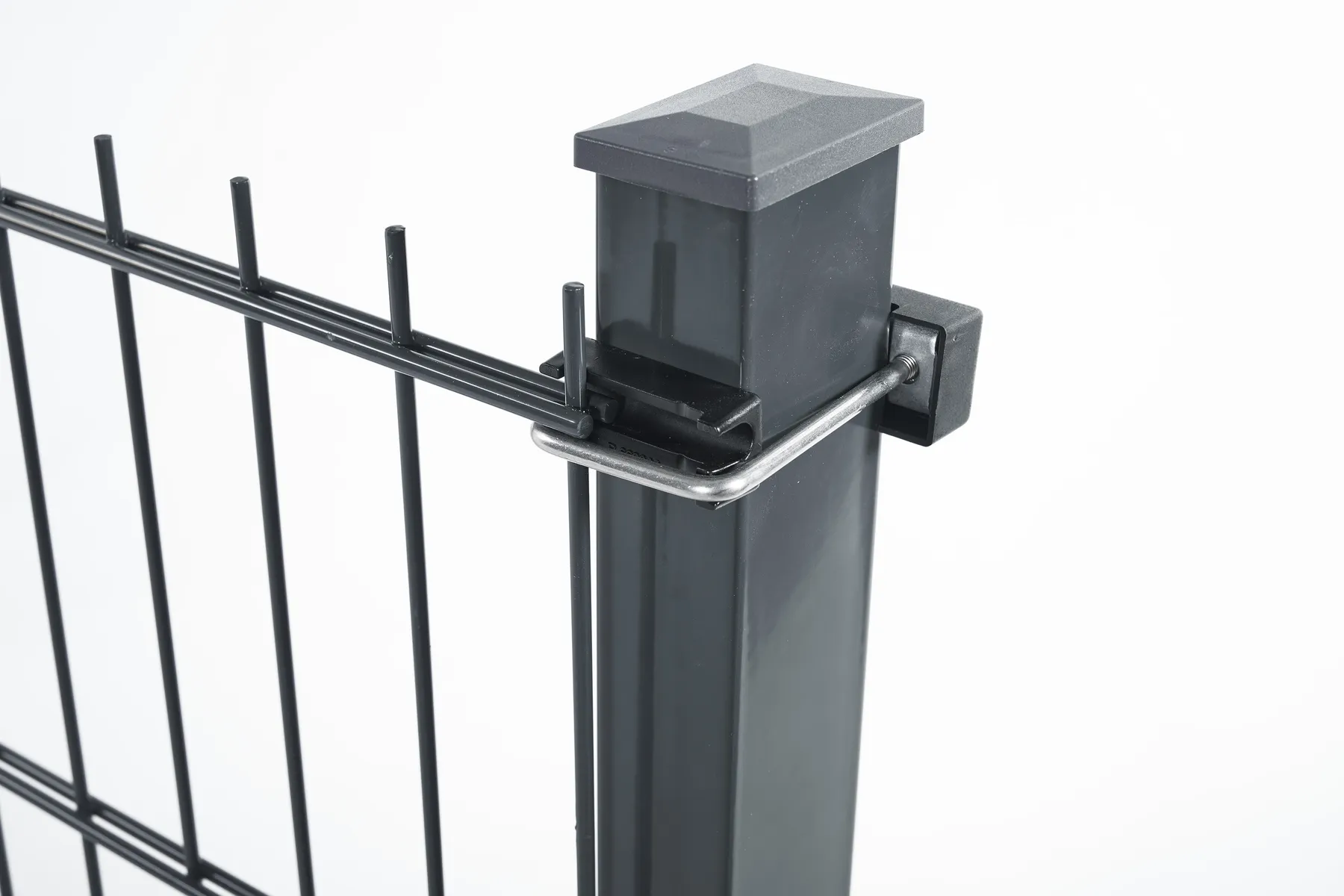

  • Stup U-lock: U-obujmica drži panel pri vrhu stupa

Pitanja

U čemu je razlika između razmaka rupa 200 mm i 400 mm?

To je razmak rupa za pričvršćenje na stupu. Pri razmaku od 200 mm na stup ide 4 do 13 kopči, ovisno o visini; pri razmaku od 400 mm ide ih 3 do 8.

Koju debljinu stijenke ima stup 40 × 60?

1,5 mm kod kraćih stupova i 2 mm kod duljih. Tablice navode presjek za svaku visinu.
