Post fixings
Clip, bolt, aluminium cap and U-clamp for the double-wire post line.
The clip and the bolt hold a panel to the 40 × 60 post: one bolt per clip, and the clip count follows the hole pattern. A plastic cap ships with every post; the aluminium cap is an upgrade. The U-clamp belongs to the U-lock post.
- References
- 4
References
Clip
1 reference · For post 40 × 60 mm
| Reference |
|---|
| CLP0001 |
Bolt
1 reference · For post 40 × 60 mm
| Reference |
|---|
| BLT0001 |
Aluminium post cap
1 reference · For post 40 × 60 mm
| Reference |
|---|
| ALC0001 |
U-clamp
1 reference
| Galvanised |
|---|
| USC0001 |
Details

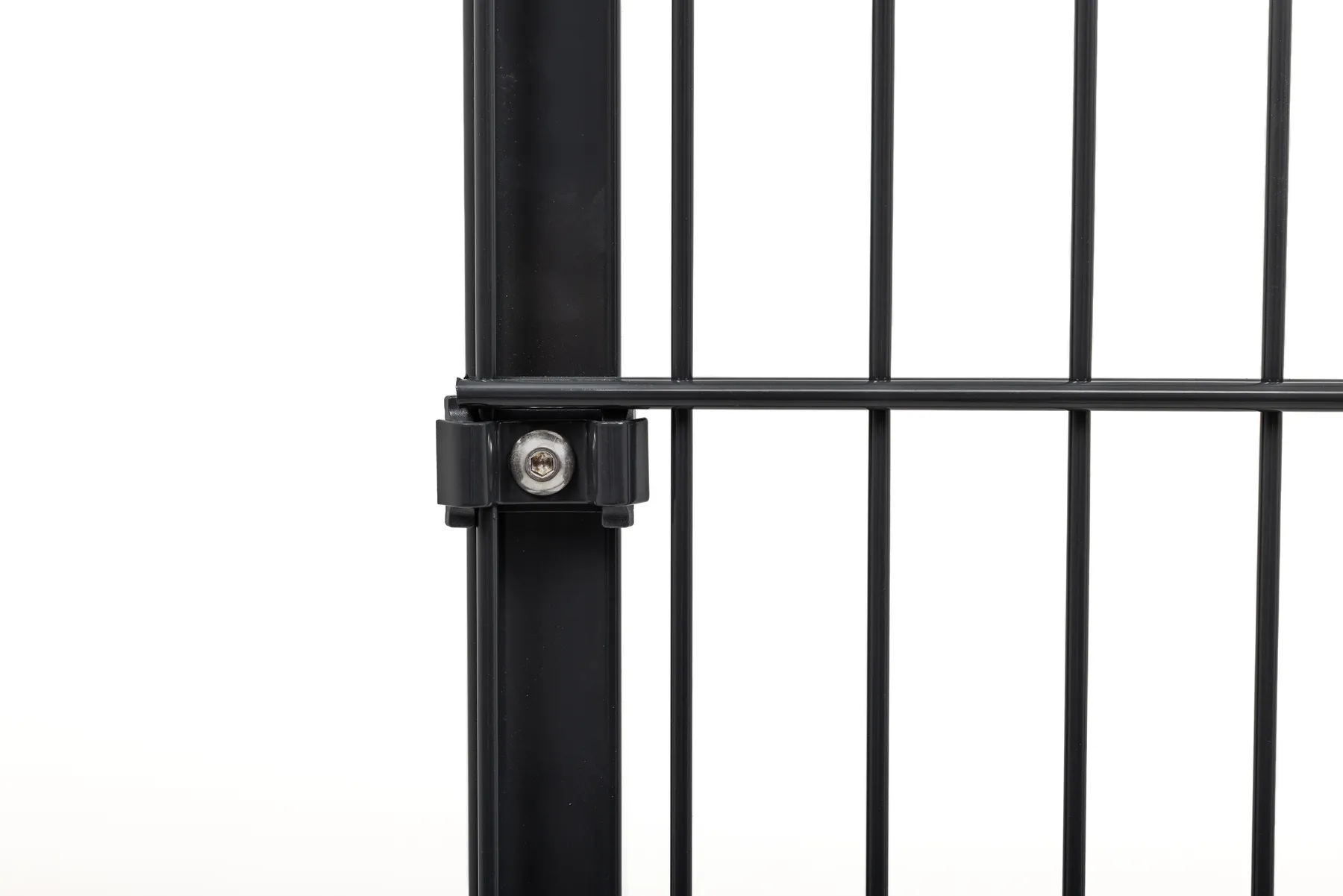

The clip and its bolt on the post, holding the panel's horizontal wire

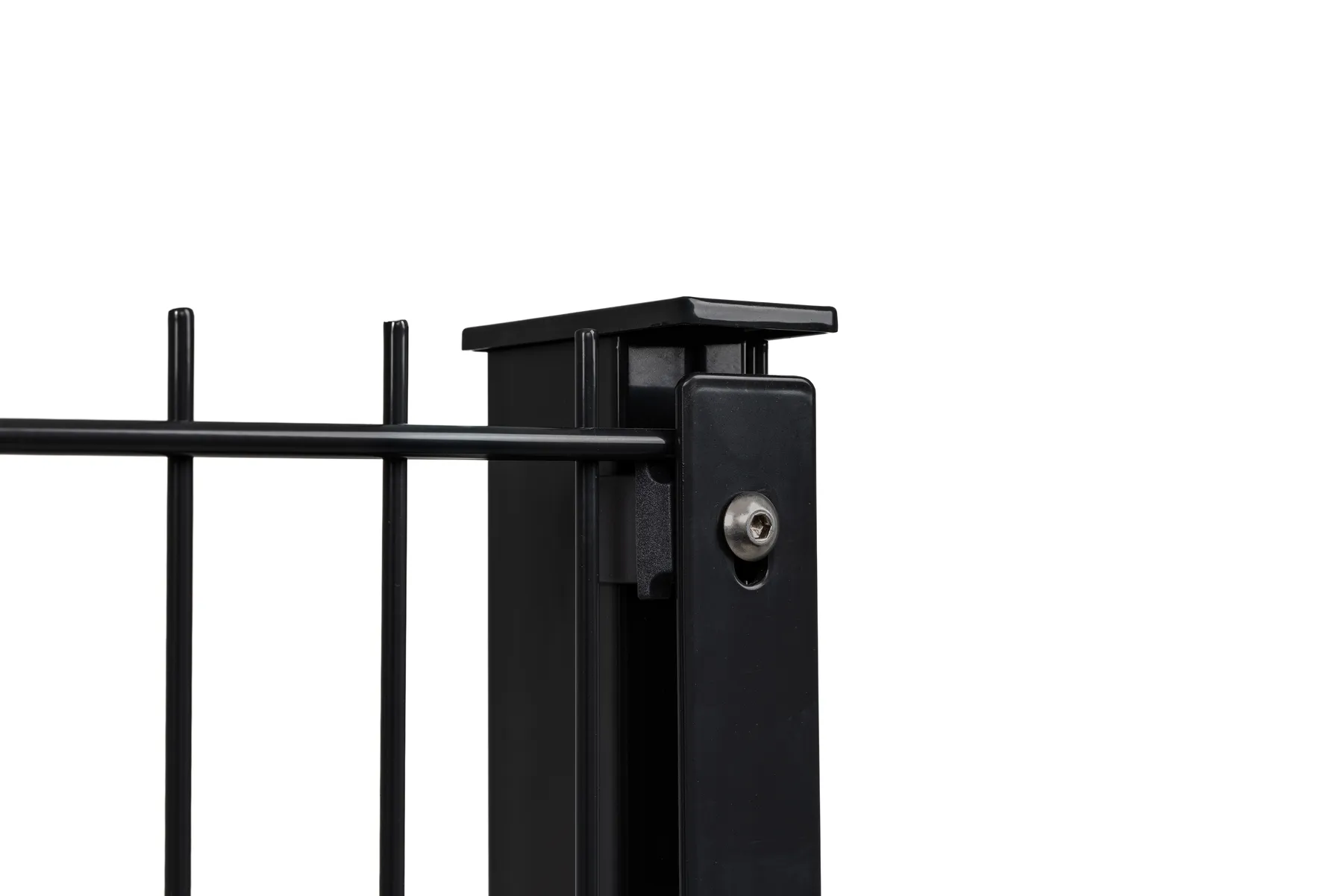

Post head with its cap, the panel beside it

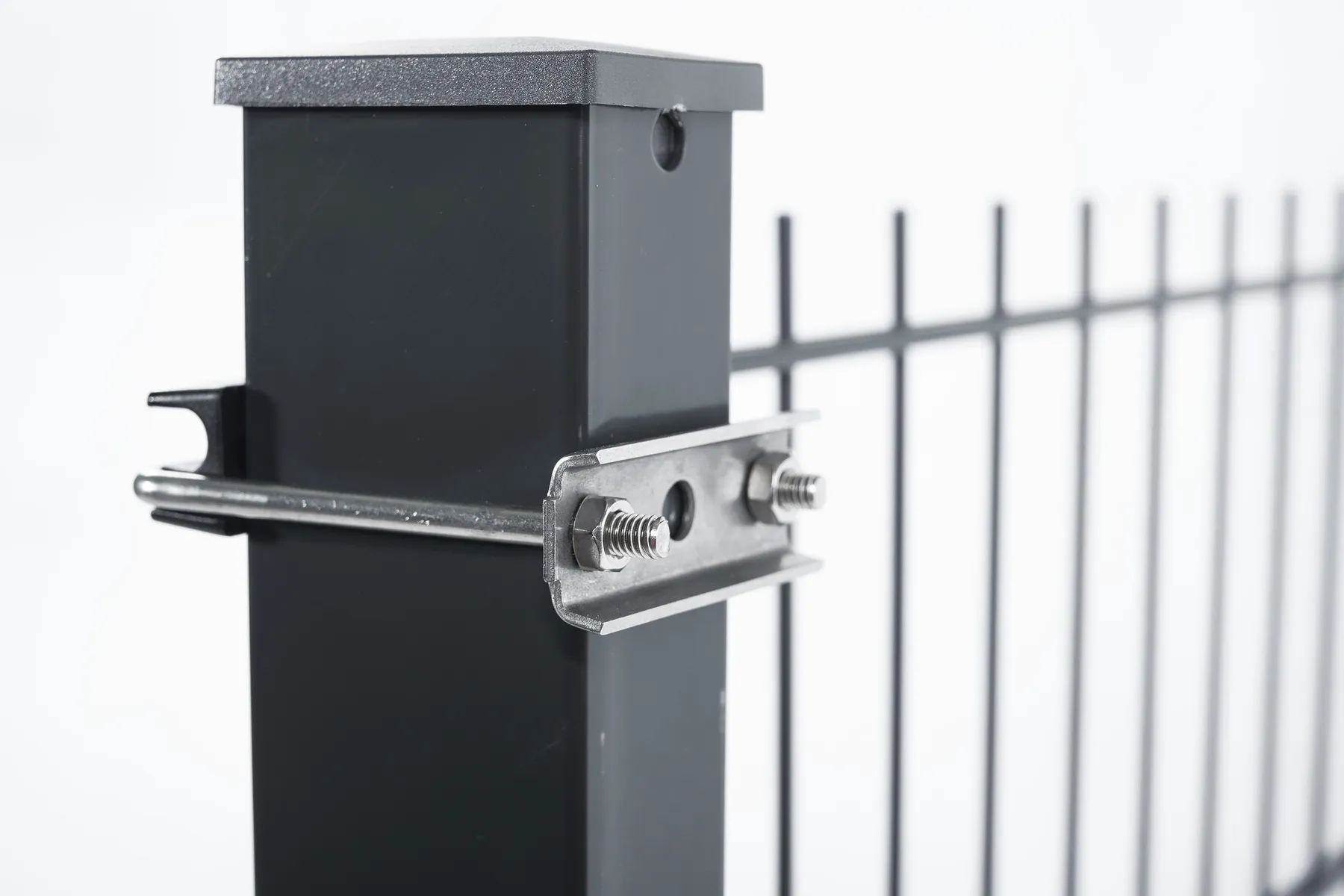

The U-clamp around the post, with its plate and nuts
Questions
How many clips does a post take?
It follows the hole pattern and the height: 4 to 13 per post on the 200 mm pattern, 3 to 8 on the 400 mm pattern, with one bolt per clip.
Is a cap included with the post?
Yes: a plastic cap ships with every post. The aluminium cap is ordered separately.
